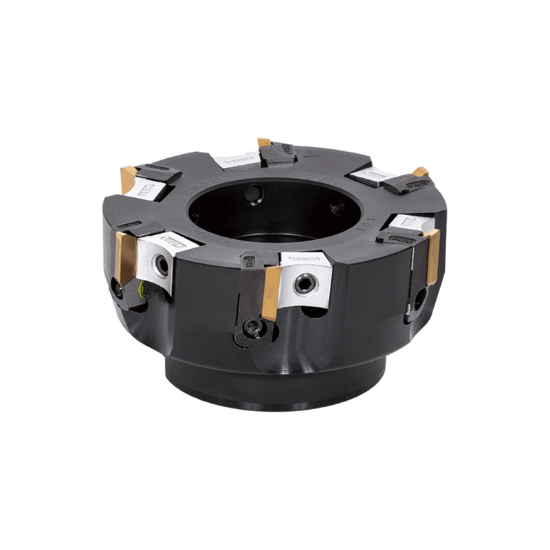

Picture of TUNGALOY TSP4003RIA-U Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 1.0000 4 Flute

TUNGALOY TSP4003RIA-U Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 1.0000 4 Flute

ANSI: TSP4003RIA-U

ISO: TSP4003RIA-U

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6809352
Delivery date: 3-5 days
$690.75

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Application Face Milling
Dimensional Specifications
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 43
Flutes/Inserts 4
Cut Dia Min 3.1500 80.01MM
Depth Of Cut Max 0.0394
Cut Dia Max 3.1500 80.01MM
Tool Material Steel
Cutting & Machining Properties
Seat/Nest 6805132
Coolant Thru No
Hand R/L Right
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Clamp Screw 6804584
Seat Screw 6801818
Clamp/Wedge 6809563
