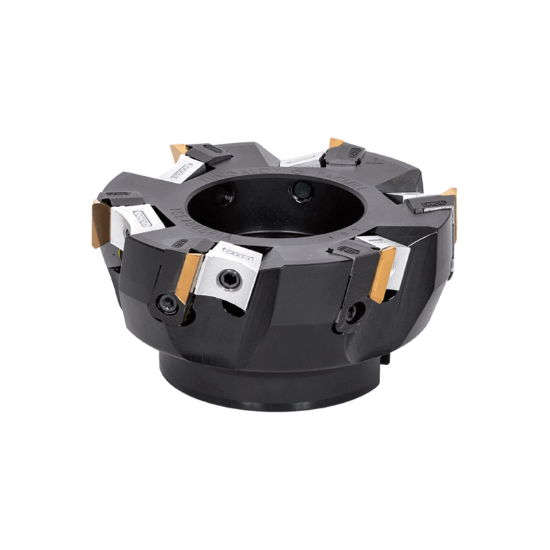

Picture of TUNGALOY TSE4005RIA-U Milling Cutter 90.0° 4.921 Cutter Diameter Shell Arbor 1.5000 6 Flute

TUNGALOY TSE4005RIA-U Milling Cutter 90.0° 4.921 Cutter Diameter Shell Arbor 1.5000 6 Flute

ANSI: TSE4005RIA-U

ISO: TSE4005RIA-U

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6809344
Delivery date: 3-5 days
$917.15
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Slot Milling, Side Milling
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Tool Material Steel
Depth Of Cut Max 0.0394
Flutes/Inserts 6
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 22
Cut Dia Min 4.9212 125.00MM
Cut Dia Max 4.9213 125.00MM
Cutter Dia 4.9213 125.00MM
Machine Side Connection Size 1.5000 38.10MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Seat/Nest 6805105
Hand R/L Right
Insert Style TE
Coolant Thru No
Fasteners & Connectors
Clamp/Wedge 6809563
Clamp Screw 6804585
Seat Screw 6801818
