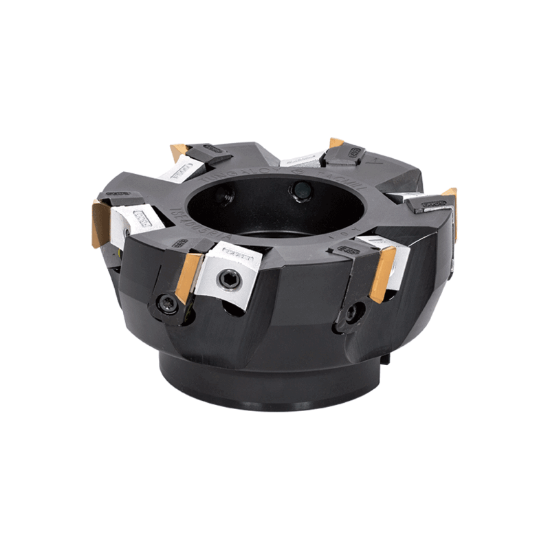

Picture of TUNGALOY TSE4003RIA Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 1.0000 4 Flute

TUNGALOY TSE4003RIA Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 1.0000 4 Flute

ANSI: TSE4003RIA

ISO: TSE4003RIA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6809338
Delivery date: 3-5 days
$690.75

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Face Milling
Insert Type Positive
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 22
Cut Dia Min 3.1500 80.01MM
Machine Side Connection Size 1.0000 25.40MM
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Tool Material Steel
Depth Of Cut Max 0.3940
Cut Dia Max 3.1500 80.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Seat/Nest 6805105
Insert Style TE
Coolant Thru No
Hand R/L Right
Fasteners & Connectors
Clamp/Wedge 6809563
Clamp Screw 6804585
Seat Screw 6801818
