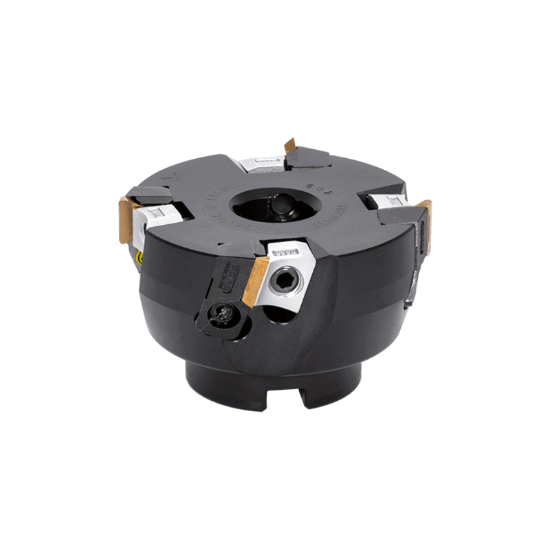

Picture of TUNGALOY TSE3063R Milling Cutter 90.0° 2.480 Cutter Diameter Shell Arbor 0.8661 3 Flute

TUNGALOY TSE3063R Milling Cutter 90.0° 2.480 Cutter Diameter Shell Arbor 0.8661 3 Flute

ANSI: TSE3063R

ISO: TSE3063R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6809337
Delivery date: 3-5 days
$370.05

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Face Milling, Slot Milling
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 2.4800 62.99MM
Flutes/Inserts 3
Tool Material Steel
Depth Of Cut Max 0.0394
Cut Dia Max 2.4800 62.99MM
Insert Size Ic 32
Cut Dia Min 2.4800 62.99MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cutting & Machining Properties
Coolant Thru No
Insert Style TE
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Clamp/Wedge 6802520
Clamp Screw 6650987
