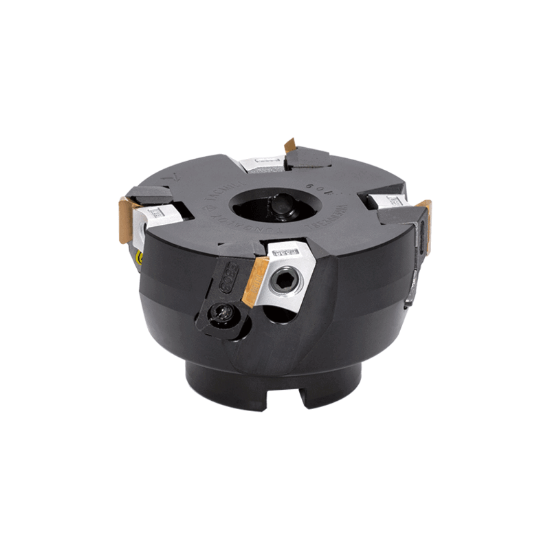

Picture of TUNGALOY TSE3050R Milling Cutter 90.0° 1.967 Cutter Diameter Shell Arbor 0.8661 3 Flute

TUNGALOY TSE3050R Milling Cutter 90.0° 1.967 Cutter Diameter Shell Arbor 0.8661 3 Flute

ANSI: TSE3050R

ISO: TSE3050R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6809336
Delivery date: 3-5 days
$343.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Positive
Application Face Milling, Side Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Insert Size Ic 32
Cut Dia Max 1.9690 50.01MM
Depth Of Cut Max 0.3150
Cut Dia Min 1.9690 50.01MM
Flutes/Inserts 3
Cutter Dia 1.9670 49.96MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru No
Hand R/L Right
Insert Style TE
Fasteners & Connectors
Clamp/Wedge 6802520
Clamp Screw 6650987
