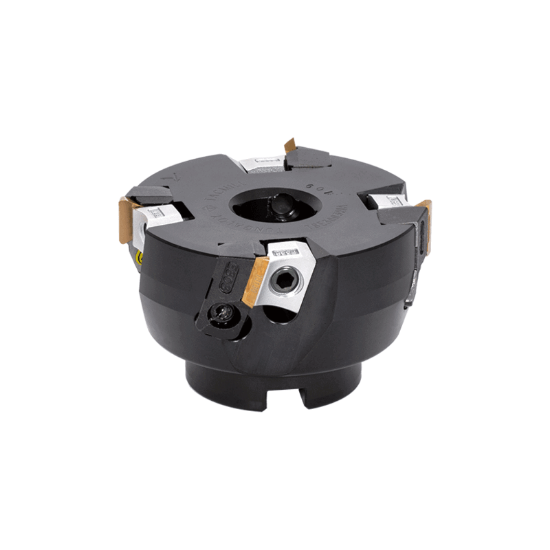

Picture of TUNGALOY TSE3005RIA Milling Cutter 90.0° 4.921 Cutter Diameter Shell Arbor 1.5000 6 Flute

TUNGALOY TSE3005RIA Milling Cutter 90.0° 4.921 Cutter Diameter Shell Arbor 1.5000 6 Flute

ANSI: TSE3005RIA

ISO: TSE3005RIA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6809334
Delivery date: 3-5 days
$995.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Slot Milling, Face Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 32
Depth Of Cut Max 0.3150
Cut Dia Min 4.9210 124.99MM
Machine Side Connection Size 1.5000 38.10MM
Cutter Dia 4.9210 124.99MM
Flutes/Inserts 6
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cut Dia Max 4.9210 124.99MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru No
Hand R/L Right
Seat/Nest 6805100
Insert Style TE
Fasteners & Connectors
Clamp/Wedge 6809564
Seat Screw 6825514
Clamp Screw 6804584
