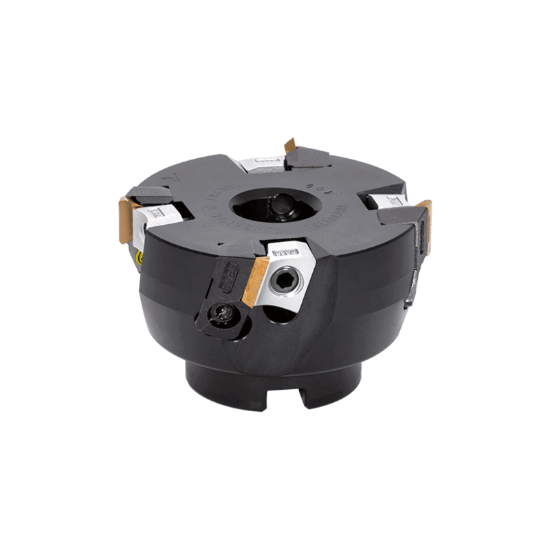

Picture of TUNGALOY TSE3004RIA Milling Cutter 90.0° 3.937 Cutter Diameter Shell Arbor 1.2500 6 Flute

TUNGALOY TSE3004RIA Milling Cutter 90.0° 3.937 Cutter Diameter Shell Arbor 1.2500 6 Flute

ANSI: TSE3004RIA

ISO: TSE3004RIA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6809333
Delivery date: 3-5 days
$850.35

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 3.9370 100.00MM
Cut Dia Max 3.9370 100.00MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 32
Depth Of Cut Max 0.3150
Flutes/Inserts 6
Cut Dia Min 3.9370 100.00MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Seat/Nest 6805100
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TE
Coolant Thru No
Hand R/L Right
Fasteners & Connectors
Seat Screw 6825514
Clamp Screw 6804584
Clamp/Wedge 6809564
