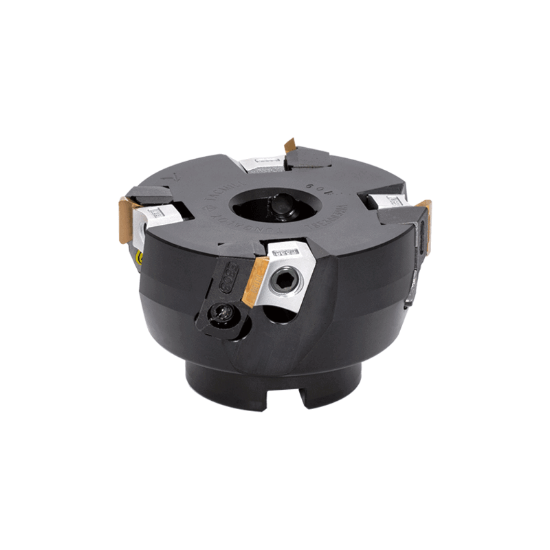

Picture of TUNGALOY TSE3003RIA Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 1.0000 4 Flute

TUNGALOY TSE3003RIA Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 1.0000 4 Flute

ANSI: TSE3003RIA

ISO: TSE3003RIA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6809332
Delivery date: 3-5 days
$690.75

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Application Side Milling, Slot Milling, Face Milling
Made In USA No
Shipping State Illinois
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 3.1500 80.01MM
Depth Of Cut Max 0.3150
Flutes/Inserts 4
Cut Dia Max 3.1500 80.01MM
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 32
Tool Material Steel
Cutting & Machining Properties
Insert Style TE
Coolant Thru No
Hand R/L Right
Seat/Nest 6805100
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Clamp Screw 6804584
Seat Screw 6825514
Clamp/Wedge 6809564
