  • TUNGALOY TRP10R040M16.0E05 Milling Cutter Button Cutter 1.575 Cutter Diameter Shell Arbor 0.6300 5 Flute

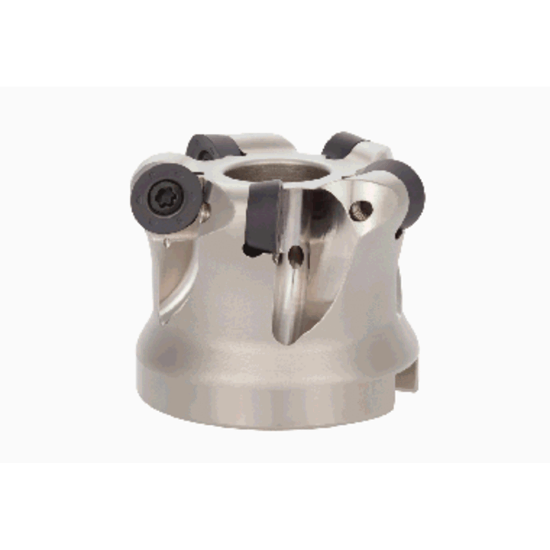

Picture of TUNGALOY TRP10R040M16.0E05 Milling Cutter Button Cutter 1.575 Cutter Diameter Shell Arbor 0.6300 5 Flute

TUNGALOY TRP10R040M16.0E05 Milling Cutter Button Cutter 1.575 Cutter Diameter Shell Arbor 0.6300 5 Flute

ANSI: TRP10R040M16.0E05

ISO: TRP10R040M16.0E05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6719542
Delivery date: 3-5 days
$588.55

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Pocket Milling, Round Milling, Ramp Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.6299 16.00MM
Cut Dia Min 1.1810 30.00MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.1970
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Flutes/Inserts 5
Insert Size Ic 10
Cut Dia Max 1.5750 40.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RP
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6817338
