  • TUNGALOY TRLG27.00X1000-25 27mm Drill body for gun Drill machine

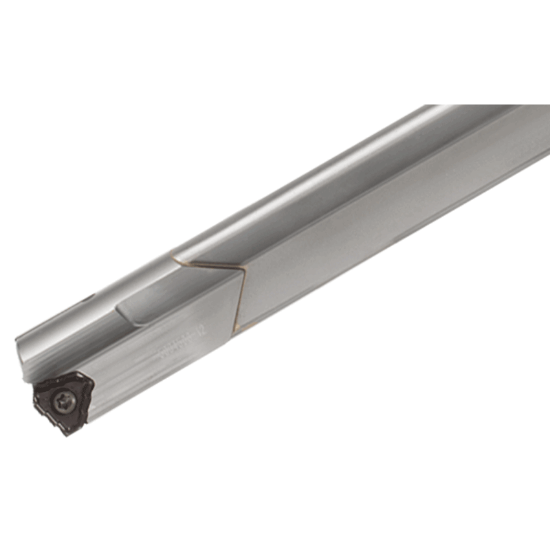

Picture of TUNGALOY TRLG27.00X1000-25 27mm Drill body for gun Drill machine

TUNGALOY TRLG27.00X1000-25 27mm Drill body for gun Drill machine

ISO: TRLG27.00X1000-25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN4890282
Delivery date: 3-5 days
$1,712.00

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Insert Drilling, Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Cutter Dia 1.0630 27.00MM
Shank/Pilot Dia 1.5748 40.00MM
Overall Len 39.5157 1003.70MM
Flutes/Inserts 1
Dia Deep 24.0XD
Flute Length 35.1850 893.70MM
Tool Material Steel
Machine Side Connection Size 1.5748 40.00MM
Cut Dia Min 1.0630 27.00MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Job Shop Yes
Mold Yes
