  • TUNGALOY TRLG26.00X1000-U06 26mm Drill body for gun Drill machine

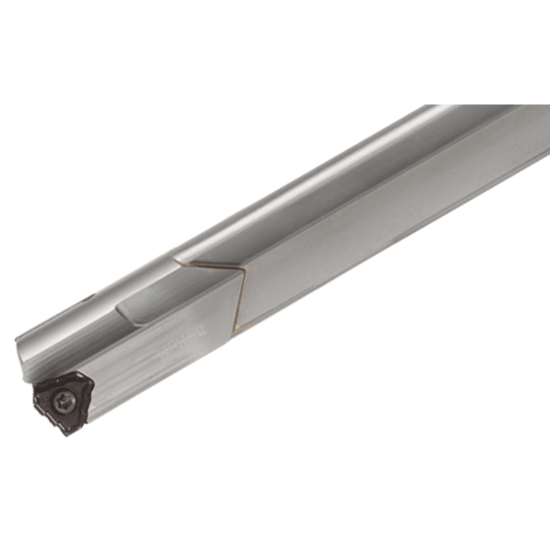

Picture of TUNGALOY TRLG26.00X1000-U06 26mm Drill body for gun Drill machine

TUNGALOY TRLG26.00X1000-U06 26mm Drill body for gun Drill machine

ISO: TRLG26.00X1000-U06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN4890279
Delivery date: 3-5 days
$1,628.80

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Insert Drilling, Drilling
Package Size 1
Shipping State Illinois
Made In USA No
Dimensional Specifications
Machine Side Connection Size 1.5000 38.10MM
Tool Material Steel
Machine Side Connection Type Boring Bar,Weldon
Cutter Dia 1.0240 26.01MM
Cut Dia Min 1.0240 26.01MM
Overall Len 39.5157 1003.70MM
Flutes/Inserts 1
Dia Deep 24.0XD
Flute Length 35.2240 894.69MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Agricultural YES
Job Shop Yes
Mold Yes
