  • TUNGALOY TRLG26.00X1000-25 26mm Drill body for gun Drill machine

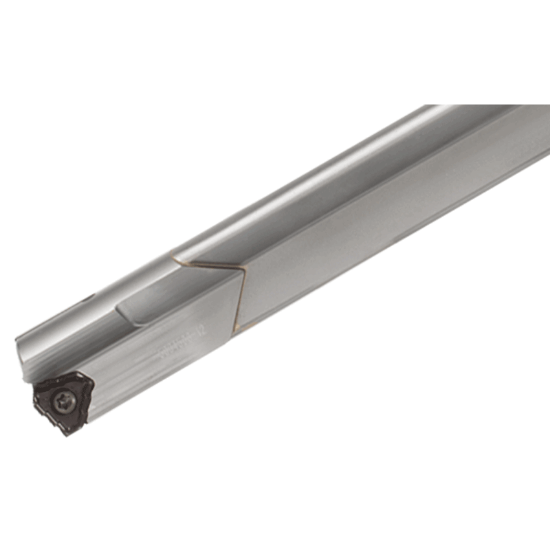

Picture of TUNGALOY TRLG26.00X1000-25 26mm Drill body for gun Drill machine

TUNGALOY TRLG26.00X1000-25 26mm Drill body for gun Drill machine

ISO: TRLG26.00X1000-25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN4890278
Delivery date: 3-5 days
$1,628.80

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Drilling, Multi Insert Drilling
Made In USA No
Package Size 1
Dimensional Specifications
Tool Material Steel
Cut Dia Min 1.0240 26.01MM
Shank/Pilot Dia 1.5748 40.00MM
Overall Len 39.5157 1003.70MM
Flutes/Inserts 1
Dia Deep 24.0XD
Flute Length 35.2240 894.69MM
Machine Side Connection Size 1.5748 40.00MM
Machine Side Connection Type Boring Bar,Weldon
Cutter Dia 1.0240 26.01MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
