  • TUNGALOY TRLG25.00X1000-U05 25mm Drill body for gun Drill machine

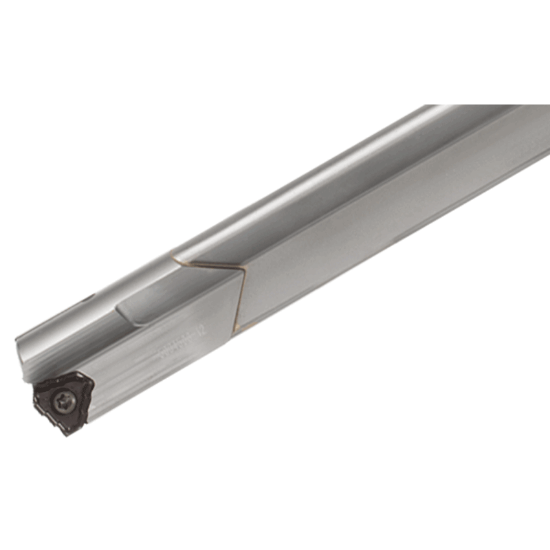

Picture of TUNGALOY TRLG25.00X1000-U05 25mm Drill body for gun Drill machine

TUNGALOY TRLG25.00X1000-U05 25mm Drill body for gun Drill machine

ISO: TRLG25.00X1000-U05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN4890273
Delivery date: 3-5 days
$1,554.85

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Insert Drilling, Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Dia Min 0.9843 25.00MM - 63/64
Tool Material Steel
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 1.2520 31.80MM
Cutter Dia 0.9844 25.00MM - 63/64
Overall Len 39.5039 1003.40MM
Flutes/Inserts 1
Dia Deep 24.0XD
Shank/Pilot Dia 1.2520 31.80MM
Flute Length 35.2910 896.39MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
