  • TUNGALOY TRLG15.00X800-23 15mm Drill body for gun Drill machine

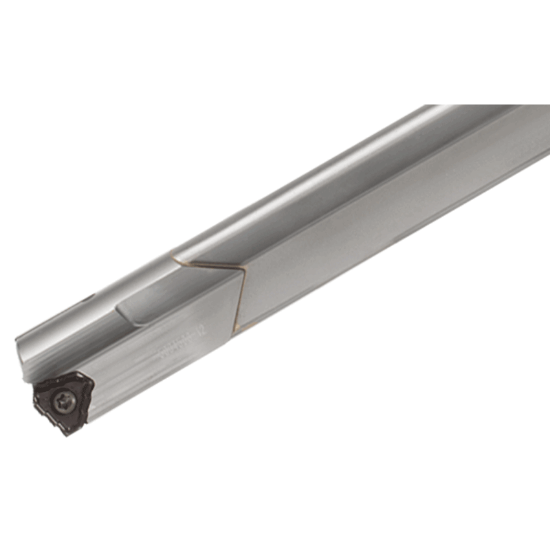

Picture of TUNGALOY TRLG15.00X800-23 15mm Drill body for gun Drill machine

TUNGALOY TRLG15.00X800-23 15mm Drill body for gun Drill machine

ISO: TRLG15.00X800-23

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN4821117
Delivery date: 3-5 days
$861.60

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Cutter Dia 0.5906 15.00MM
Cut Dia Min 0.5906 15.00MM
Overall Len 31.5748 802.00MM
Shank/Pilot Dia 0.9843 25.00MM
Machine Side Connection Type Boring Bar,Weldon
Flutes/Inserts 1
Dia Deep 23.0XD
Flute Length 28.4650 723.01MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
