  • TUNGALOY TRLG12.70X1524-U04 1/2" Drill body for gun Drill machine

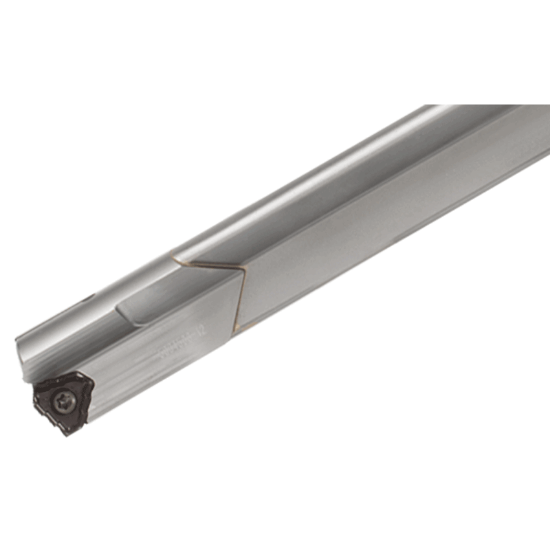

Picture of TUNGALOY TRLG12.70X1524-U04 1/2" Drill body for gun Drill machine

TUNGALOY TRLG12.70X1524-U04 1/2" Drill body for gun Drill machine

ISO: TRLG12.70X1524-U04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN4853432
Delivery date: 3-5 days
$902.15

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Flute Length 56.5670 1436.80MM
Flutes/Inserts 1
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Size 1.0000 25.40MM
Overall Len 60.0710 1525.80MM
Machine Side Connection Type Boring Bar,Weldon
Cut Dia Min 0.5000 12.70MM - 1/2
Dia Deep 22.0XD
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Job Shop Yes
Mold Yes
