  • TUNGALOY TRC16R063M22.0-05 Milling Cutter Button Cutter 2.480 Cutter Diameter Shell Arbor 0.8661 5 Flute

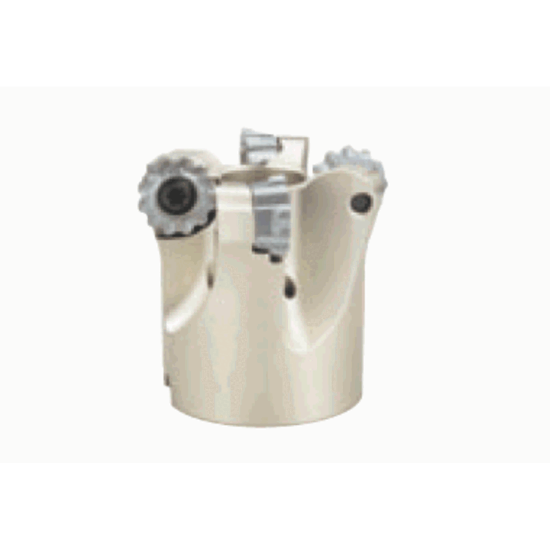

Picture of TUNGALOY TRC16R063M22.0-05 Milling Cutter Button Cutter 2.480 Cutter Diameter Shell Arbor 0.8661 5 Flute

TUNGALOY TRC16R063M22.0-05 Milling Cutter Button Cutter 2.480 Cutter Diameter Shell Arbor 0.8661 5 Flute

ANSI: TRC16R063M22.0-05

ISO: TRC16R063M22.0-05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3028889
Delivery date: 3-5 days
$806.45
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Insert Type Positive
Application Face Milling, Round Milling, Ramp Milling, Pocket Milling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 2.4800 62.99MM
Cut Dia Min 1.8500 46.99MM
Tool Material Steel
Flutes/Inserts 5
Cutter Dia 2.4800 62.99MM
Depth Of Cut Max 0.3150
Machine Side Connection Size 0.8661 22.00MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 16
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
Insert Style RC
Fasteners & Connectors
Insert Screw 7061740
