  • TUNGALOY TRC16R050M22.2-04 Milling Cutter Button Cutter 1.967 Cutter Diameter Shell Arbor 0.8750 4 Flute

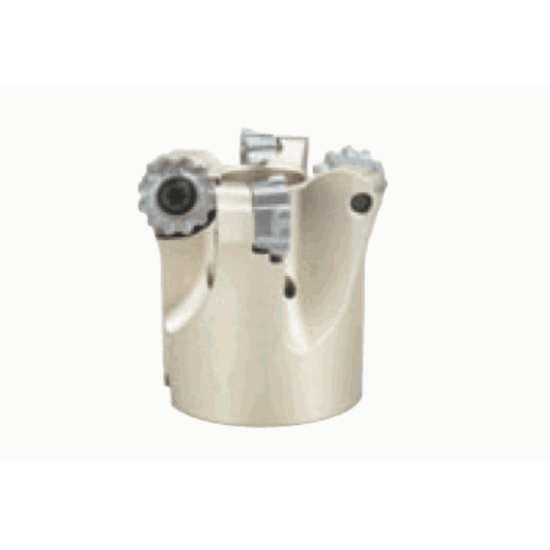

Picture of TUNGALOY TRC16R050M22.2-04 Milling Cutter Button Cutter 1.967 Cutter Diameter Shell Arbor 0.8750 4 Flute

TUNGALOY TRC16R050M22.2-04 Milling Cutter Button Cutter 1.967 Cutter Diameter Shell Arbor 0.8750 4 Flute

ANSI: TRC16R050M22.2-04

ISO: TRC16R050M22.2-04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3028888
Delivery date: 3-5 days
$680.40
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Ramp Milling, Pocket Milling, Round Milling
Package Size 1
Insert Type Positive
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Tool Material Steel
Insert Size Ic 16
Machine Side Connection Size 0.8750 22.23MM
Cut Dia Max 1.9690 50.01MM
Depth Of Cut Max 0.3150
Cutter Dia 1.9670 49.96MM
Cut Dia Min 1.3390 34.01MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
Insert Style RC
Fasteners & Connectors
Insert Screw 7061740
