  • TUNGALOY TRC16R050M22.0-04 Milling Cutter Button Cutter 1.967 Cutter Diameter Shell Arbor 0.8661 4 Flute

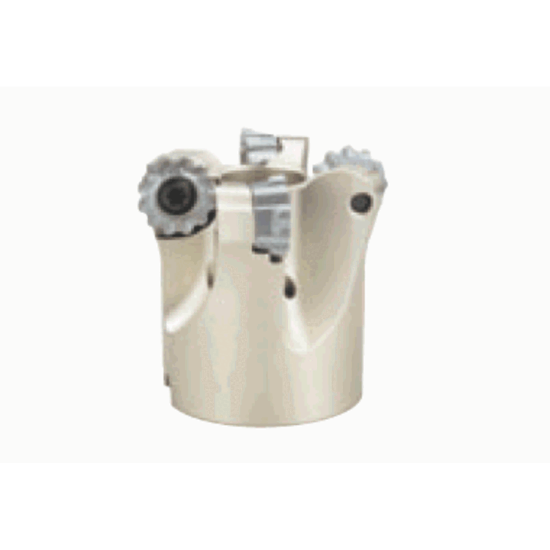

Picture of TUNGALOY TRC16R050M22.0-04 Milling Cutter Button Cutter 1.967 Cutter Diameter Shell Arbor 0.8661 4 Flute

TUNGALOY TRC16R050M22.0-04 Milling Cutter Button Cutter 1.967 Cutter Diameter Shell Arbor 0.8661 4 Flute

ANSI: TRC16R050M22.0-04

ISO: TRC16R050M22.0-04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3028887
Delivery date: 3-5 days
$680.40
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Ramp Milling, Round Milling
Shipping State Illinois
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Dimensional Specifications
Tool Material Steel
Depth Of Cut Max 0.3150
Cut Dia Min 1.3390 34.01MM
Cut Dia Max 1.9690 50.01MM
Insert Size Ic 16
Cutter Dia 1.9670 49.96MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Flutes/Inserts 4
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RC
Fasteners & Connectors
Insert Screw 7061740
