  • TUNGALOY TRC12R200U0075A05 Milling Cutter Button Cutter 2.000 Cutter Diameter Shell Arbor 0.7500 5 Flute

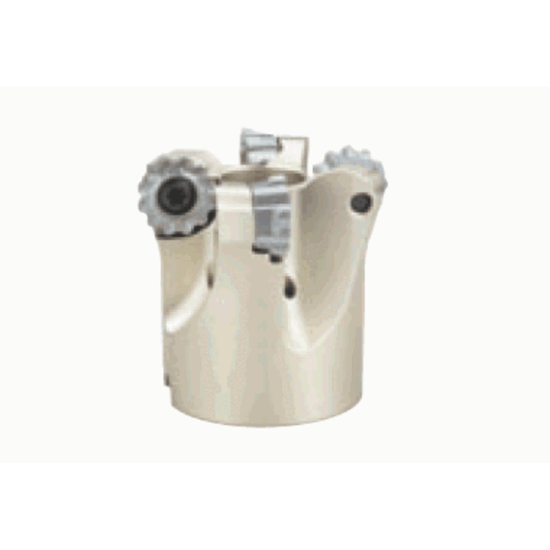

Picture of TUNGALOY TRC12R200U0075A05 Milling Cutter Button Cutter 2.000 Cutter Diameter Shell Arbor 0.7500 5 Flute

TUNGALOY TRC12R200U0075A05 Milling Cutter Button Cutter 2.000 Cutter Diameter Shell Arbor 0.7500 5 Flute

ANSI: TRC12R200U0075A05

ISO: TRC12R200U0075A05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3028946
Delivery date: 3-5 days
$737.75

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Ramp Milling, Pocket Milling, Round Milling
Package Size 1
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Dimensional Specifications
Cutter Dia 2.0000 50.80MM
Cut Dia Min 1.5276 38.80MM
Depth Of Cut Max 0.2360
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Max 2.0000 50.80MM
Insert Size Ic 12
Cutting & Machining Properties
Coolant Thru Yes
Insert Style RC
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Fasteners & Connectors
Insert Screw 7009629
