  • TUNGALOY TRC12R066M22.0E06 Milling Cutter Button Cutter 2.598 Cutter Diameter Shell Arbor 0.8661 6 Flute

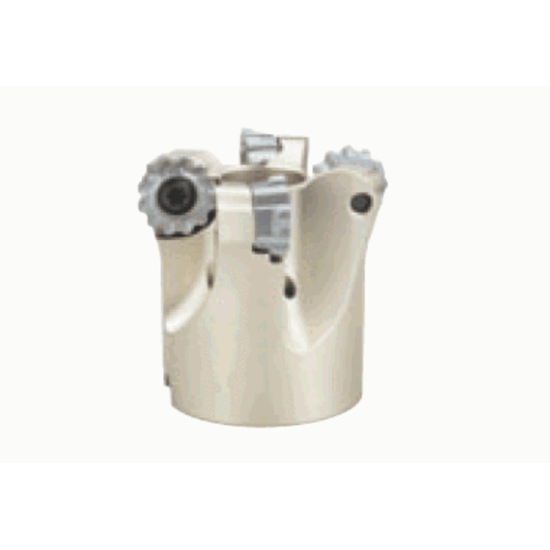

Picture of TUNGALOY TRC12R066M22.0E06 Milling Cutter Button Cutter 2.598 Cutter Diameter Shell Arbor 0.8661 6 Flute

TUNGALOY TRC12R066M22.0E06 Milling Cutter Button Cutter 2.598 Cutter Diameter Shell Arbor 0.8661 6 Flute

ANSI: TRC12R066M22.0E06

ISO: TRC12R066M22.0E06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3028937
Delivery date: 3-5 days
$886.05

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Round Milling, Face Milling, Ramp Milling
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.2360
Tool Material Steel
Insert Size Ic 12
Cut Dia Max 2.5980 65.99MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Flutes/Inserts 6
Cutter Dia 2.5980 65.99MM
Cut Dia Min 2.1260 54.00MM
Cutting & Machining Properties
Insert Style RC
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7009629
