  • TUNGALOY TRC12R052M22.0E05 Milling Cutter Button Cutter 2.047 Cutter Diameter Shell Arbor 0.8661 5 Flute

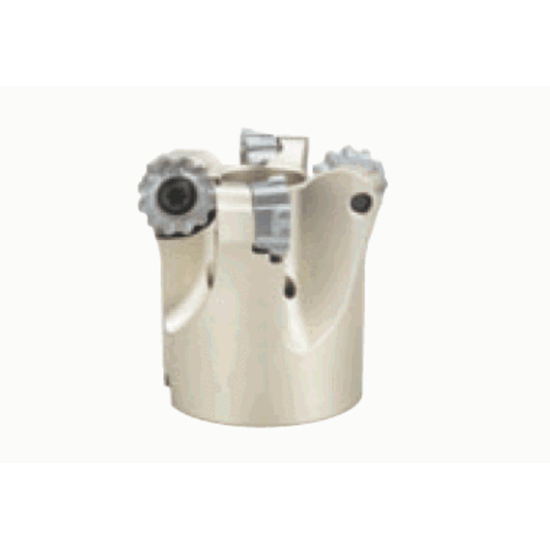

Picture of TUNGALOY TRC12R052M22.0E05 Milling Cutter Button Cutter 2.047 Cutter Diameter Shell Arbor 0.8661 5 Flute

TUNGALOY TRC12R052M22.0E05 Milling Cutter Button Cutter 2.047 Cutter Diameter Shell Arbor 0.8661 5 Flute

ANSI: TRC12R052M22.0E05

ISO: TRC12R052M22.0E05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3028935
Delivery date: 3-5 days
$737.75

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Face Milling, Round Milling
Insert Type Positive
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Dia Max 2.0470 51.99MM
Depth Of Cut Max 0.2360
Tool Material Steel
Flutes/Inserts 5
Cutter Dia 2.0470 51.99MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Insert Size Ic 12
Cut Dia Min 1.5750 40.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RC
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7009629
