  • TUNGALOY TRC12R050M22.2-05 Milling Cutter Button Cutter 1.967 Cutter Diameter Shell Arbor 0.8750 5 Flute

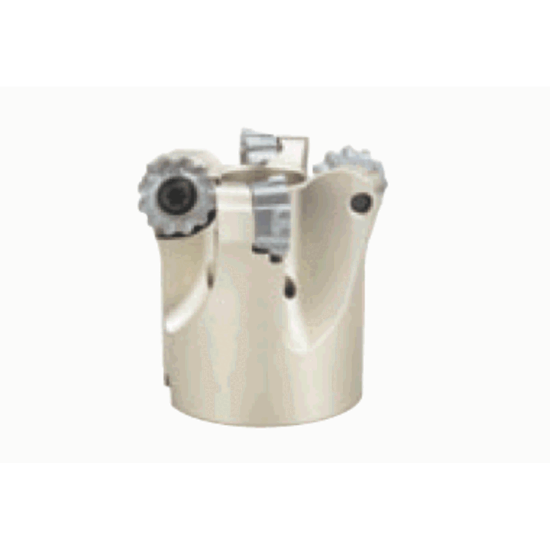

Picture of TUNGALOY TRC12R050M22.2-05 Milling Cutter Button Cutter 1.967 Cutter Diameter Shell Arbor 0.8750 5 Flute

TUNGALOY TRC12R050M22.2-05 Milling Cutter Button Cutter 1.967 Cutter Diameter Shell Arbor 0.8750 5 Flute

ANSI: TRC12R050M22.2-05

ISO: TRC12R050M22.2-05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3028883
Delivery date: 3-5 days
$737.75
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Ramp Milling, Face Milling, Pocket Milling
Made In USA No
Package Size 1
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 0.8750 22.23MM
Flutes/Inserts 5
Cut Dia Min 1.4960 38.00MM
Cut Dia Max 1.9690 50.01MM
Insert Size Ic 12
Cutter Dia 1.9670 49.96MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.2360
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Style RC
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Fasteners & Connectors
Insert Screw 7009629
