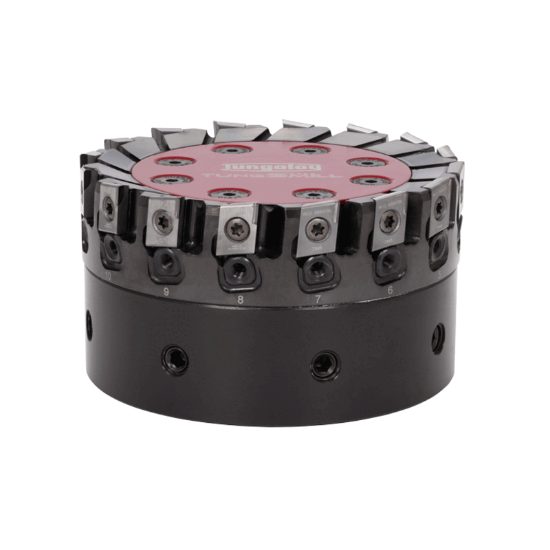

Picture of TUNGALOY TPYP12M050B22.0R08 Milling Cutter 90.0° 1.967 Cutter Diameter Shell Arbor 0.8661 8 Flute

TUNGALOY TPYP12M050B22.0R08 Milling Cutter 90.0° 1.967 Cutter Diameter Shell Arbor 0.8661 8 Flute

ANSI: TPYP12M050B22.0R08

ISO: TPYP12M050B22.0R08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN2717387
Delivery date: 3-5 days
$835.90

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Shipping State Illinois
Made In USA No
Application Face Milling
Dimensional Specifications
Cut Rating Aluminum, Brass, Plastic
Depth Of Cut Max 0.6570
Cut Dia Min 1.9690 50.01MM
Flutes/Inserts 8
Tool Material Steel
Cut Dia Max 2.0240 51.41MM
Insert Size Ic 12
Cutter Dia 1.9670 49.96MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cutting & Machining Properties
Hand R/L Right
Insert Style TP
Insert Shape/Cutter Pocket Shape Other
Fasteners & Connectors
Insert Screw 2704942
Clamp Screw 4360308
Clamp/Wedge 2714362
