  • TUNGALOY TPYD06U4.00B1.25R22 Milling Cutter 90.0° 4.000 Cutter Diameter Shell Arbor 1.2500 22 Flute

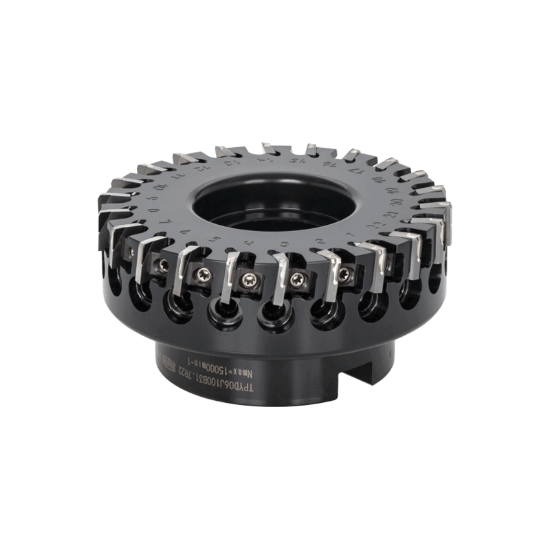

Picture of TUNGALOY TPYD06U4.00B1.25R22 Milling Cutter 90.0° 4.000 Cutter Diameter Shell Arbor 1.2500 22 Flute

TUNGALOY TPYD06U4.00B1.25R22 Milling Cutter 90.0° 4.000 Cutter Diameter Shell Arbor 1.2500 22 Flute

ANSI: TPYD06U4.00B1.25R22

ISO: TPYD06U4.00B1.25R22

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6782260
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Application Face Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 6
Depth Of Cut Max 0.1770
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 22
Cutter Dia 4.0000 101.60MM
Cut Dia Min 4.0000 101.60MM
Cut Dia Max 4.0790 103.61MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style YD
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Fasteners & Connectors
Clamp/Wedge 6777511
Clamp Screw 6538983
