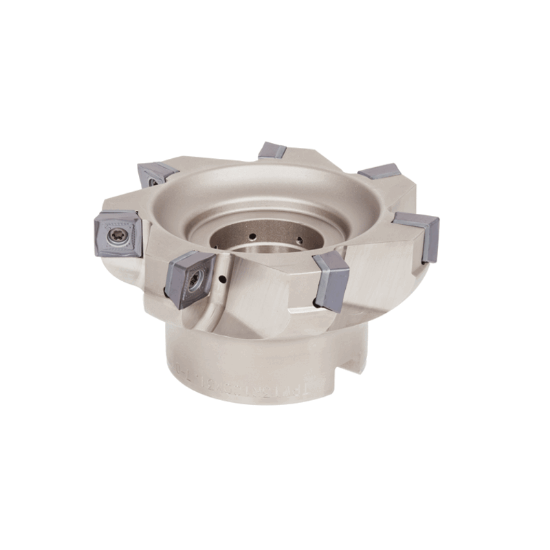

Picture of TUNGALOY TPW13R400U0150A07 Milling Cutter 90.0° 4.000 Cutter Diameter Shell Arbor 1.5000 7 Flute

TUNGALOY TPW13R400U0150A07 Milling Cutter 90.0° 4.000 Cutter Diameter Shell Arbor 1.5000 7 Flute

ANSI: TPW13R400U0150A07

ISO: TPW13R400U0150A07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6848587
Delivery date: 3-5 days
$983.55

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Positive
Application Face Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 13
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 7
Depth Of Cut Max 0.3940
Cut Dia Max 4.0000 101.60MM
Cutter Dia 4.0000 101.60MM
Cut Dia Min 4.0000 101.60MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Insert Style SW
Seat/Nest 6846766
Fasteners & Connectors
Seat Screw 6846768
Insert Screw 6815314
