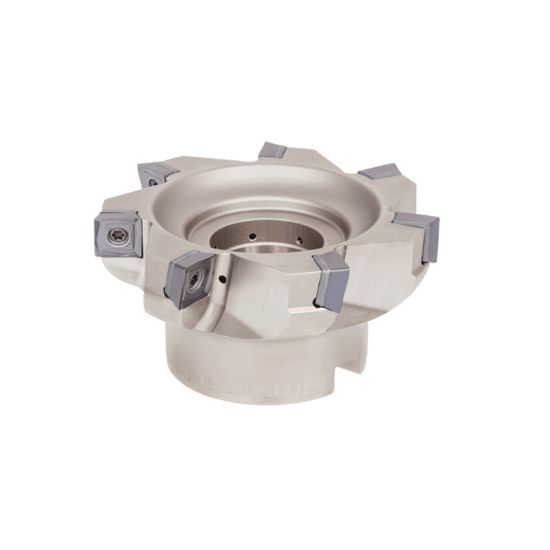

Picture of TUNGALOY TPW13R200U0075A03 Milling Cutter 90.0° 2.000 Cutter Diameter Shell Arbor 0.7500 3 Flute

TUNGALOY TPW13R200U0075A03 Milling Cutter 90.0° 2.000 Cutter Diameter Shell Arbor 0.7500 3 Flute

ANSI: TPW13R200U0075A03

ISO: TPW13R200U0075A03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6850796
Delivery date: 3-5 days
$512.65

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Application Side Milling, Face Milling
Insert Type Positive
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Dia Max 2.0000 50.80MM
Cutter Dia 2.0000 50.80MM
Depth Of Cut Max 0.1970
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 13
Cut Dia Min 2.0000 50.80MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Insert Style SW
Seat/Nest 6846766
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6815314
Seat Screw 6846768
