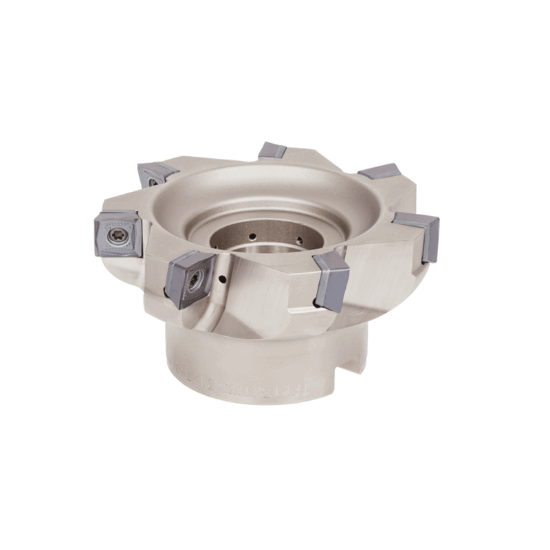

Picture of TUNGALOY TPW13R125M38.1-06 Milling Cutter 90.0° 4.921 Cutter Diameter Shell Arbor 1.5000 6 Flute

TUNGALOY TPW13R125M38.1-06 Milling Cutter 90.0° 4.921 Cutter Diameter Shell Arbor 1.5000 6 Flute

ANSI: TPW13R125M38.1-06

ISO: TPW13R125M38.1-06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6849806
Delivery date: 3-5 days
$983.55

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Application Side Milling, Face Milling
Package Size 1
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 4.9210 124.99MM
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 4.9210 124.99MM
Flutes/Inserts 6
Depth Of Cut Max 0.0394
Insert Size Ic 13
Cut Dia Min 4.9210 124.99MM
Machine Side Connection Size 1.5000 38.10MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Insert Style SW
Seat/Nest 6846766
Fasteners & Connectors
Seat Screw 6846768
Insert Screw 6815314
