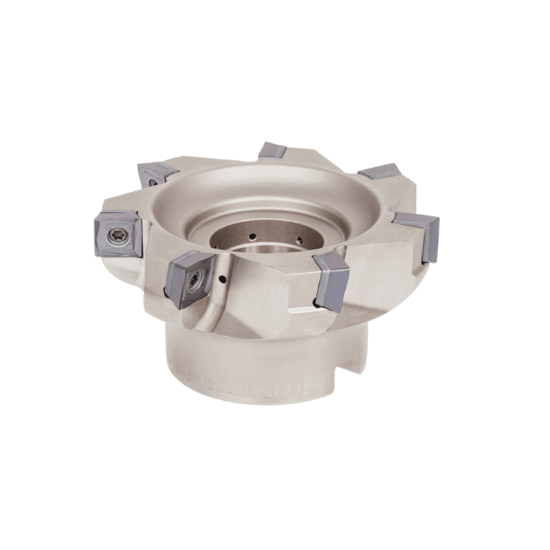

Picture of TUNGALOY TPW13R100M32.0E07 Milling Cutter 90.0° 3.937 Cutter Diameter Shell Arbor 1.2598 7 Flute

TUNGALOY TPW13R100M32.0E07 Milling Cutter 90.0° 3.937 Cutter Diameter Shell Arbor 1.2598 7 Flute

ANSI: TPW13R100M32.0E07

ISO: TPW13R100M32.0E07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6845748
Delivery date: 3-5 days
$983.55

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.1969
Insert Size Ic 13
Flutes/Inserts 7
Cut Dia Min 3.9370 100.00MM
Tool Material Steel
Cutter Dia 3.9370 100.00MM
Cut Dia Max 3.9370 100.00MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2598 32.00MM
Cutting & Machining Properties
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Insert Style SW
Seat/Nest 6846766
Fasteners & Connectors
Seat Screw 6846768
Insert Screw 6815314
