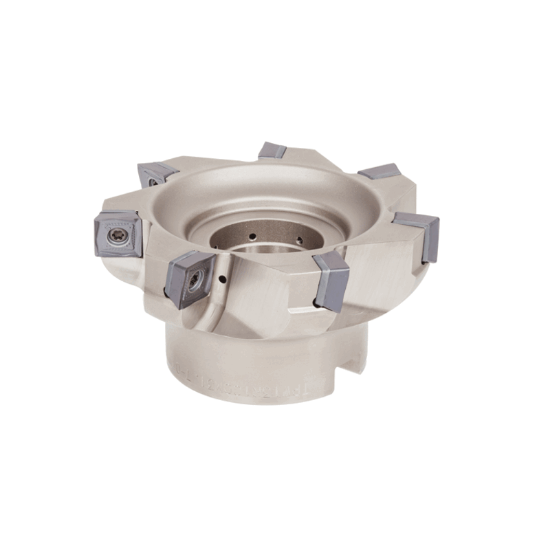

Picture of TUNGALOY TPW13R080M27.0E08 Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 0.6300 8 Flute

TUNGALOY TPW13R080M27.0E08 Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 0.6300 8 Flute

ANSI: TPW13R080M27.0E08

ISO: TPW13R080M27.0E08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6845745
Delivery date: 3-5 days
$975.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Shipping State Illinois
Application Side Milling, Face Milling
Insert Type Positive
Made In USA No
Package Size 1
Dimensional Specifications
Cut Dia Min 3.1500 80.01MM
Depth Of Cut Max 0.0394
Cut Dia Max 3.1500 80.01MM
Flutes/Inserts 8
Tool Material Steel
Machine Side Connection Size 0.6299 16.00MM
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 13
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Insert Style SW
Seat/Nest 6846766
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6815314
Seat Screw 6846768
