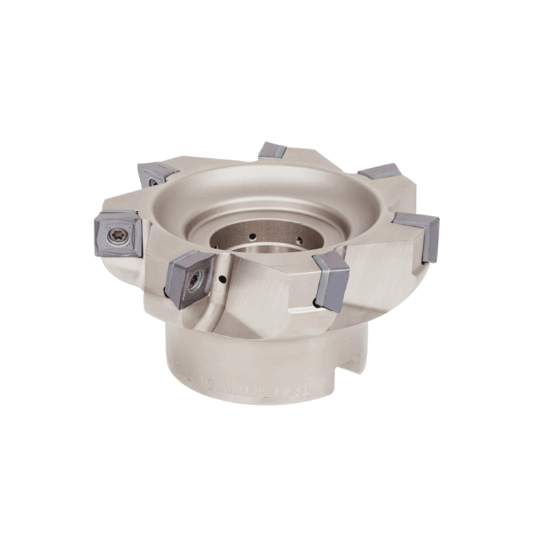

Picture of TUNGALOY TPW13R080M27.0E06 Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 0.6300 6 Flute

TUNGALOY TPW13R080M27.0E06 Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 0.6300 6 Flute

ANSI: TPW13R080M27.0E06

ISO: TPW13R080M27.0E06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6845747
Delivery date: 3-5 days
$809.95

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Illinois
Insert/Tool Tool
Made In USA No
Insert Type Positive
Dimensional Specifications
Insert Size Ic 13
Cut Dia Max 3.1500 80.01MM
Flutes/Inserts 6
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Depth Of Cut Max 0.0394
Cut Dia Min 3.1500 80.01MM
Machine Side Connection Size 0.6299 16.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SW
Seat/Nest 6846766
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Seat Screw 6846768
Insert Screw 6815314
