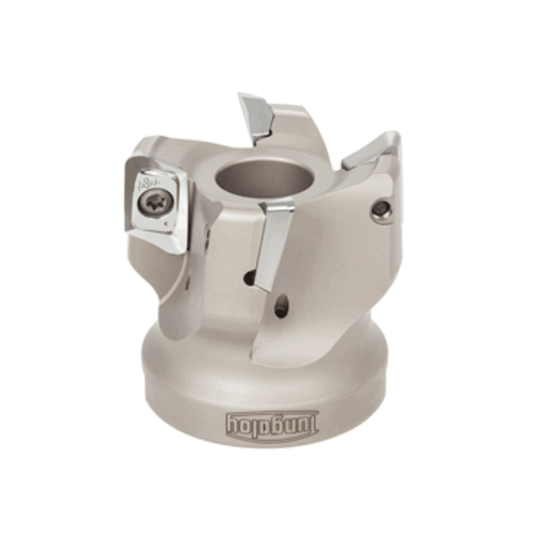

Picture of TUNGALOY TPV16R300U0100A05 Milling Cutter 90.0° 3.000 Cutter Diameter Shell Arbor 1.0000 5 Flute

TUNGALOY TPV16R300U0100A05 Milling Cutter 90.0° 3.000 Cutter Diameter Shell Arbor 1.0000 5 Flute

ANSI: TPV16R300U0100A05

ISO: TPV16R300U0100A05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6103401
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Slot Milling, Ramp Milling, Side Milling
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 5
Depth Of Cut Max 0.6300
Insert Size Ic 16
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Max 3.0000 76.20MM
Cutter Dia 3.0000 76.20MM
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Style XV
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 4354896
