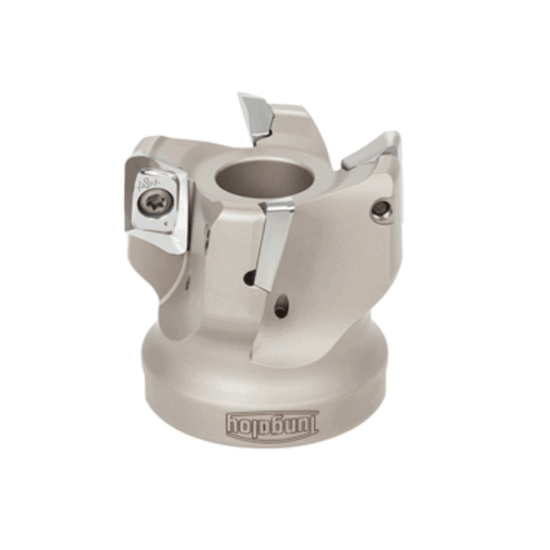

Picture of TUNGALOY TPV16R250U0100A05 Milling Cutter 90.0° 2.500 Cutter Diameter Shell Arbor 1.0000 5 Flute

TUNGALOY TPV16R250U0100A05 Milling Cutter 90.0° 2.500 Cutter Diameter Shell Arbor 1.0000 5 Flute

ANSI: TPV16R250U0100A05

ISO: TPV16R250U0100A05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6103400
Delivery date: 3-5 days
$654.90

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Slot Milling, Face Milling
Made In USA No
Shipping State Illinois
Insert Type Positive
Insert Application Roughing, Semi Finishing
Package Size 1
Dimensional Specifications
Insert Size Ic 16
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Flutes/Inserts 5
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.6300
Cutting & Machining Properties
Coolant Thru Yes
Insert Style XV
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Fasteners & Connectors
Insert Screw 4354896
