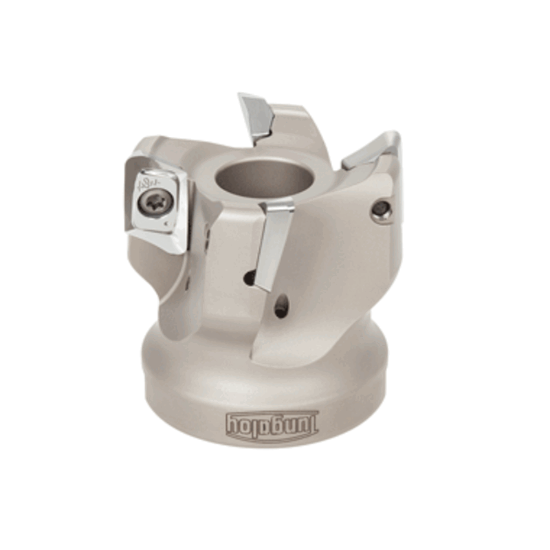

Picture of TUNGALOY TPV16R200U0075A04 Milling Cutter 90.0° 2.000 Cutter Diameter Shell Arbor 0.7500 4 Flute

TUNGALOY TPV16R200U0075A04 Milling Cutter 90.0° 2.000 Cutter Diameter Shell Arbor 0.7500 4 Flute

ANSI: TPV16R200U0075A04

ISO: TPV16R200U0075A04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6103399
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Face Milling, Pocket Milling, Side Milling
Insert Type Positive
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.6300
Flutes/Inserts 4
Insert Size Ic 16
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style XV
Coolant Thru Yes
Hand R/L Right
Fasteners & Connectors
Insert Screw 4354896
