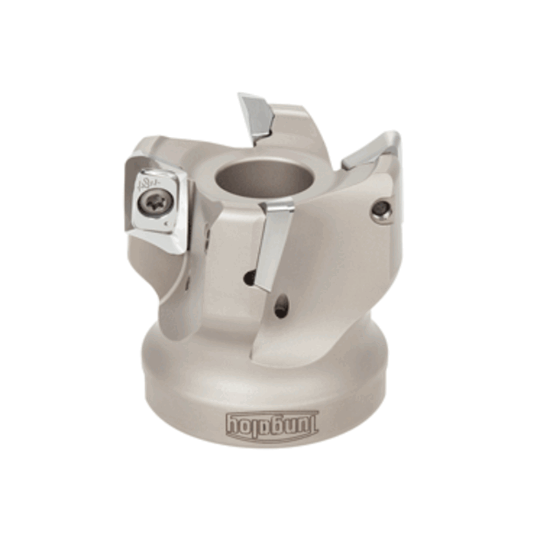

Picture of TUNGALOY TPV16R100M32.0E06 Milling Cutter 90.0° 3.937 Cutter Diameter Shell Arbor 1.2598 6 Flute

TUNGALOY TPV16R100M32.0E06 Milling Cutter 90.0° 3.937 Cutter Diameter Shell Arbor 1.2598 6 Flute

ANSI: TPV16R100M32.0E06

ISO: TPV16R100M32.0E06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3109660
Delivery date: 3-5 days
$943.65

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Pocket Milling, Ramp Milling, Side Milling, Slot Milling
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Insert Size Ic 16
Depth Of Cut Max 0.6299
Cut Dia Min 3.9370 100.00MM
Tool Material Steel
Cutter Dia 3.9370 100.00MM
Cut Dia Max 3.9370 100.00MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2598 32.00MM
Shank/Pilot Dia 1.2598 32.00MM
Flutes/Inserts 6
Cutting & Machining Properties
Insert Style XV
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Fasteners & Connectors
Insert Screw 4354896
