  • TUNGALOY TPV16R063M22.0E05 Milling Cutter 90.0° 2.480 Cutter Diameter Cylindrical Shank0.8661 5 Flute

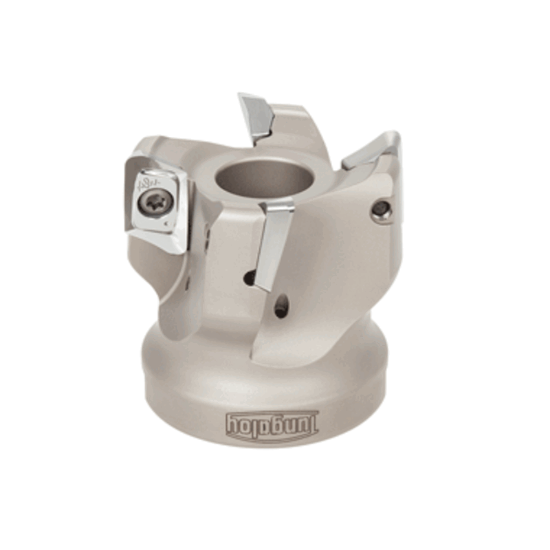

Picture of TUNGALOY TPV16R063M22.0E05 Milling Cutter 90.0° 2.480 Cutter Diameter Cylindrical Shank0.8661 5 Flute

TUNGALOY TPV16R063M22.0E05 Milling Cutter 90.0° 2.480 Cutter Diameter Cylindrical Shank0.8661 5 Flute

ANSI: TPV16R063M22.0E05

ISO: TPV16R063M22.0E05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3109659
Delivery date: 3-5 days
$654.90

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 0.8661 22.00MM
Machine Side Connection Size 0.8661 22.00MM
Insert Size Ic 16
Depth Of Cut Max 0.6299
Cut Dia Min 2.4800 62.99MM
Machine Side Connection Type Cylindrical
Cutter Dia 2.4800 62.99MM
Tool Material Steel
Flutes/Inserts 5
Cut Dia Max 2.4800 62.99MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style XV
Coolant Thru Yes
Hand R/L Right
Fasteners & Connectors
Insert Screw 4354896
