  • TUNGALOY TPTN12U4.00B1.50R10 Milling Cutter 90.0° 4.000 Cutter Diameter Shell Arbor 1.5000 10 Flute

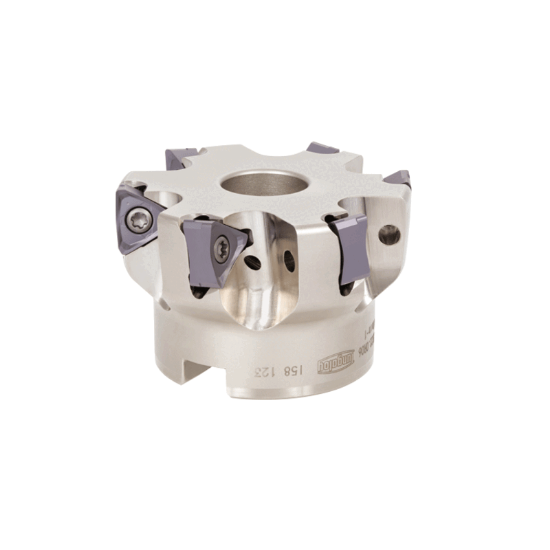

Picture of TUNGALOY TPTN12U4.00B1.50R10 Milling Cutter 90.0° 4.000 Cutter Diameter Shell Arbor 1.5000 10 Flute

TUNGALOY TPTN12U4.00B1.50R10 Milling Cutter 90.0° 4.000 Cutter Diameter Shell Arbor 1.5000 10 Flute

ANSI: TPTN12U4.00B1.50R10

ISO: TPTN12U4.00B1.50R10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6730281
Delivery date: 3-5 days
$1,148.65

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Application Slot Milling, Side Milling, Face Milling
Insert/Tool Tool
Insert Type Positive
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 12
Cut Dia Max 4.0000 101.60MM
Cutter Dia 4.0000 101.60MM
Tool Material Steel
Flutes/Inserts 10
Depth Of Cut Max 0.4330
Cut Dia Min 4.0000 101.60MM
Machine Side Connection Size 1.5000 38.10MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Coolant Thru No
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TN
Fasteners & Connectors
Insert Screw 6815314
