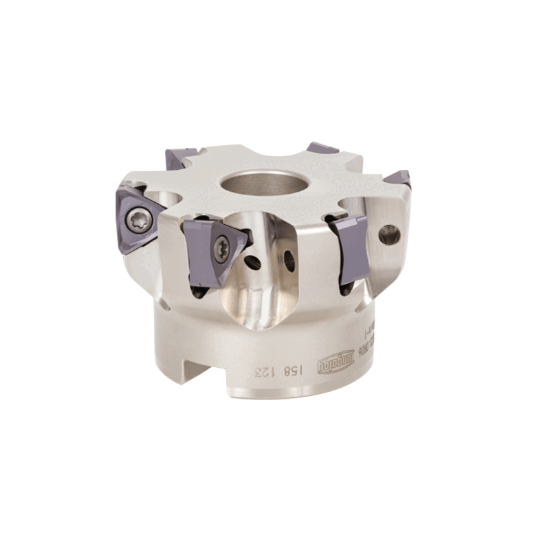

Picture of TUNGALOY TPTN12U3.00B1.00R08 Milling Cutter 90.0° 3.000 Cutter Diameter Shell Arbor 1.0000 8 Flute

TUNGALOY TPTN12U3.00B1.00R08 Milling Cutter 90.0° 3.000 Cutter Diameter Shell Arbor 1.0000 8 Flute

ANSI: TPTN12U3.00B1.00R08

ISO: TPTN12U3.00B1.00R08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6730280
Delivery date: 3-5 days
$975.85

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.4330
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 8
Cut Dia Max 3.0000 76.20MM
Cutter Dia 3.0000 76.20MM
Cut Dia Min 3.0000 76.20MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TN
Coolant Thru No
Hand R/L Right
Fasteners & Connectors
Insert Screw 6815314
