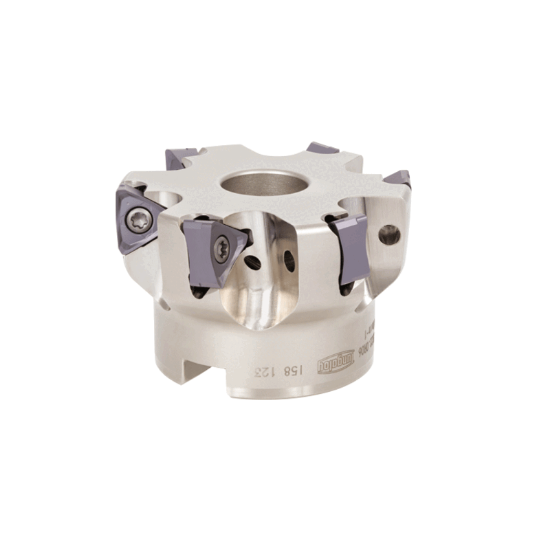

Picture of TUNGALOY TPTN12M100B32.0R07 Milling Cutter 90.0° 3.937 Cutter Diameter Shell Arbor 1.2598 7 Flute

TUNGALOY TPTN12M100B32.0R07 Milling Cutter 90.0° 3.937 Cutter Diameter Shell Arbor 1.2598 7 Flute

ANSI: TPTN12M100B32.0R07

ISO: TPTN12M100B32.0R07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6730271
Delivery date: 3-5 days
$937.70

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Illinois
Application Slot Milling, Face Milling, Side Milling
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.4331
Cutter Dia 3.9370 100.00MM
Cut Dia Max 3.9370 100.00MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 1.2598 32.00MM
Cut Dia Min 3.9370 100.00MM
Flutes/Inserts 7
Insert Size Ic 12
Cutting & Machining Properties
Insert Style TN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Hand R/L Right
Fasteners & Connectors
Insert Screw 6815314
