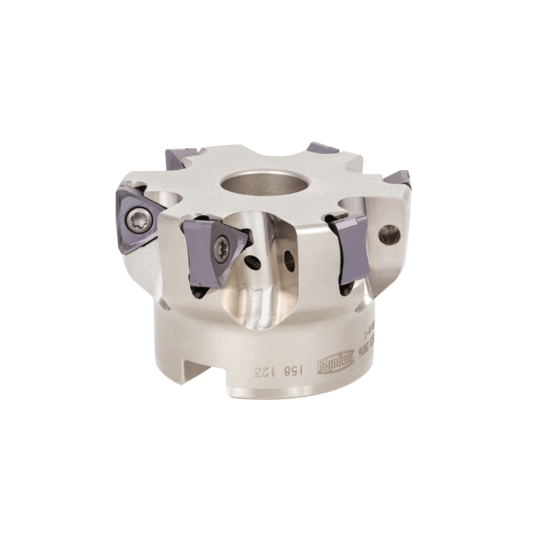

Picture of TUNGALOY TPTN12M063B22.0R06 Milling Cutter 90.0° 2.480 Cutter Diameter Shell Arbor 0.8661 6 Flute

TUNGALOY TPTN12M063B22.0R06 Milling Cutter 90.0° 2.480 Cutter Diameter Shell Arbor 0.8661 6 Flute

ANSI: TPTN12M063B22.0R06

ISO: TPTN12M063B22.0R06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6722452
Delivery date: 3-5 days
$742.75

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Package Size 1
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Cut Dia Min 2.4800 62.99MM
Cut Dia Max 2.4800 62.99MM
Flutes/Inserts 6
Cutter Dia 2.4800 62.99MM
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Depth Of Cut Max 0.4331
Tool Material Steel
Cutting & Machining Properties
Insert Style TN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6815314
