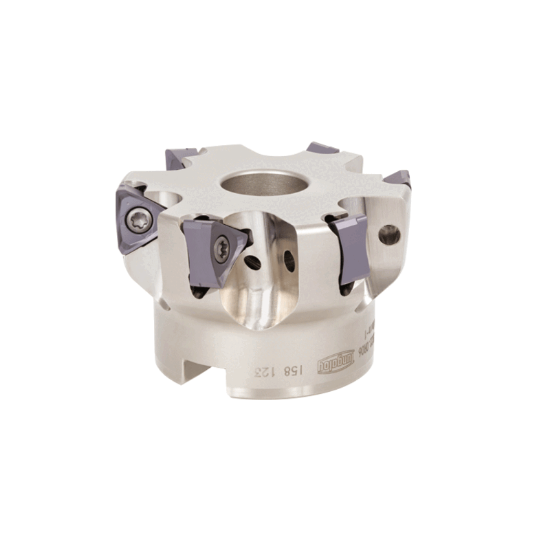

Picture of TUNGALOY TPTN12M063B22.0R05 Milling Cutter 90.0° 2.480 Cutter Diameter Shell Arbor 0.8661 5 Flute

TUNGALOY TPTN12M063B22.0R05 Milling Cutter 90.0° 2.480 Cutter Diameter Shell Arbor 0.8661 5 Flute

ANSI: TPTN12M063B22.0R05

ISO: TPTN12M063B22.0R05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6730267
Delivery date: 3-5 days
$698.05

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Face Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cut Dia Max 2.4800 62.99MM
Insert Size Ic 12
Cutter Dia 2.4800 62.99MM
Depth Of Cut Max 0.4331
Tool Material Steel
Flutes/Inserts 5
Cut Dia Min 2.4800 62.99MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style TN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Insert Screw 6815314
