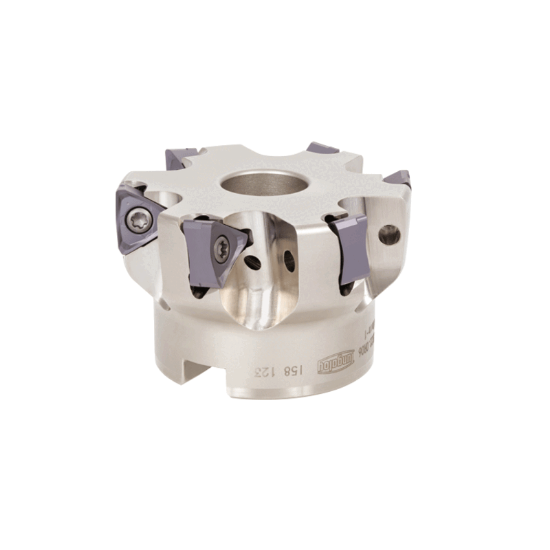

Picture of TUNGALOY TPTN12J125B38.1R12 Milling Cutter 90.0° 4.921 Cutter Diameter Shell Arbor 1.5000 12 Flute

TUNGALOY TPTN12J125B38.1R12 Milling Cutter 90.0° 4.921 Cutter Diameter Shell Arbor 1.5000 12 Flute

ANSI: TPTN12J125B38.1R12

ISO: TPTN12J125B38.1R12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6722457
Delivery date: 3-5 days
$1,389.85

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Slot Milling, Face Milling, Side Milling
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Cutter Dia 4.9210 124.99MM
Cut Dia Max 4.9210 124.99MM
Flutes/Inserts 12
Depth Of Cut Max 0.4331
Tool Material Steel
Cut Dia Min 4.9210 124.99MM
Machine Side Connection Size 1.5000 38.10MM
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Style TN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6815314
