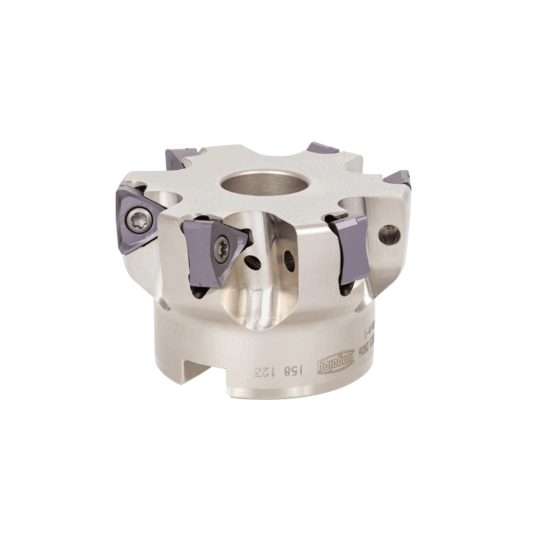

Picture of TUNGALOY TPTN12J080B25.4R08 Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 1.0000 8 Flute

TUNGALOY TPTN12J080B25.4R08 Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 1.0000 8 Flute

ANSI: TPTN12J080B25.4R08

ISO: TPTN12J080B25.4R08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6722453
Delivery date: 3-5 days
$975.85

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Application Side Milling, Slot Milling, Face Milling
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 3.1500 80.01MM
Insert Size Ic 12
Flutes/Inserts 8
Depth Of Cut Max 0.4331
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cut Dia Max 3.1500 80.01MM
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Hand R/L Right
Insert Style TN
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6815314
