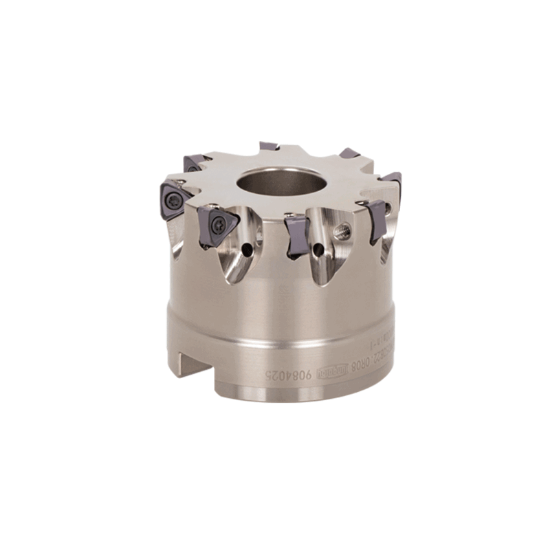

Picture of TUNGALOY TPTN07U2.00B0.75R08 Milling Cutter 90.0° 2.000 Cutter Diameter Shell Arbor 0.7500 8 Flute

TUNGALOY TPTN07U2.00B0.75R08 Milling Cutter 90.0° 2.000 Cutter Diameter Shell Arbor 0.7500 8 Flute

ANSI: TPTN07U2.00B0.75R08

ISO: TPTN07U2.00B0.75R08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6786251
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Application Side Milling, Face Milling
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Insert Size Ic 7
Cut Dia Max 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.2559
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 2.0000 50.80MM
Flutes/Inserts 8
Cut Dia Min 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TN
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6851335
