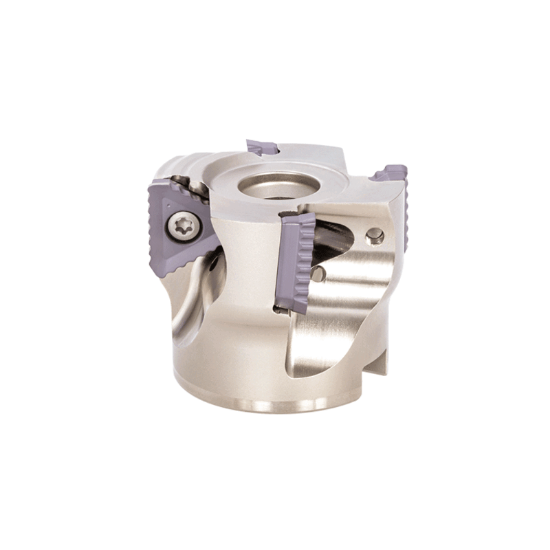

Picture of TUNGALOY TPTC16U4.00B1.50R07 Milling Cutter 90.0° 4.000 Cutter Diameter Shell Arbor 1.5000 7 Flute

TUNGALOY TPTC16U4.00B1.50R07 Milling Cutter 90.0° 4.000 Cutter Diameter Shell Arbor 1.5000 7 Flute

ANSI: TPTC16U4.00B1.50R07

ISO: TPTC16U4.00B1.50R07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6735583
Delivery date: 3-5 days
$1,001.55

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.6299
Cut Dia Max 4.0000 101.60MM
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 7
Cutter Dia 4.0000 101.60MM
Insert Size Ic 16
Tool Material Steel
Cut Dia Min 4.0000 101.60MM
Cutting & Machining Properties
Insert Style TC
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
Hand R/L Right
Fasteners & Connectors
Insert Screw 4352055
