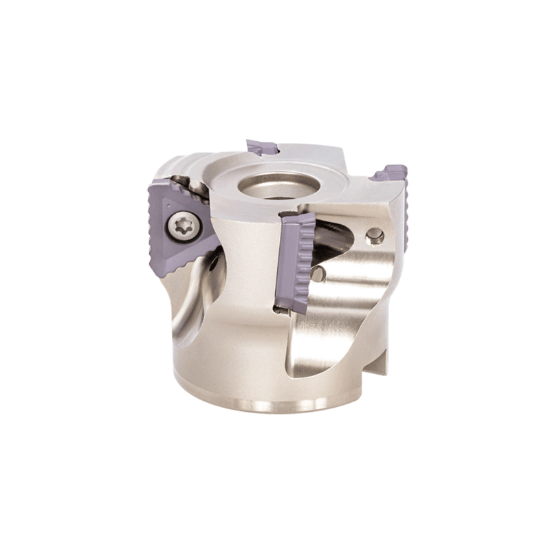

Picture of TUNGALOY TPTC16U3.00B1.00R06 Milling Cutter 90.0° 3.000 Cutter Diameter Shell Arbor 1.0000 6 Flute

TUNGALOY TPTC16U3.00B1.00R06 Milling Cutter 90.0° 3.000 Cutter Diameter Shell Arbor 1.0000 6 Flute

ANSI: TPTC16U3.00B1.00R06

ISO: TPTC16U3.00B1.00R06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6735582
Delivery date: 3-5 days
$805.35

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Application Side Milling, Face Milling, Slot Milling
Made In USA No
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.6300
Flutes/Inserts 6
Tool Material Steel
Cutter Dia 3.0000 76.20MM
Cut Dia Max 3.0000 76.20MM
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 16
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Hand R/L Right
Coolant Thru Yes
Insert Style TC
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Insert Screw 4352055
