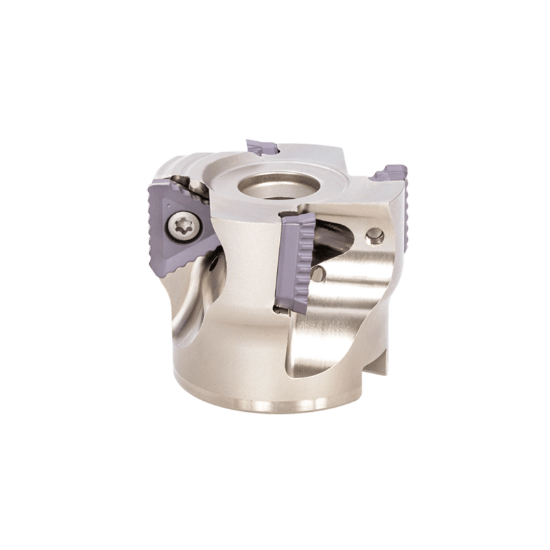

Picture of TUNGALOY TPTC16M080B27.0R06 Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 0.6300 6 Flute

TUNGALOY TPTC16M080B27.0R06 Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 0.6300 6 Flute

ANSI: TPTC16M080B27.0R06

ISO: TPTC16M080B27.0R06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6735578
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Application Side Milling, Face Milling, Slot Milling
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.6299 16.00MM
Insert Size Ic 16
Depth Of Cut Max 0.6299
Cut Dia Min 3.1500 80.01MM
Tool Material Steel
Cut Dia Max 3.1500 80.01MM
Flutes/Inserts 6
Cutting & Machining Properties
Insert Style TC
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Hand R/L Right
Fasteners & Connectors
Insert Screw 4352055
