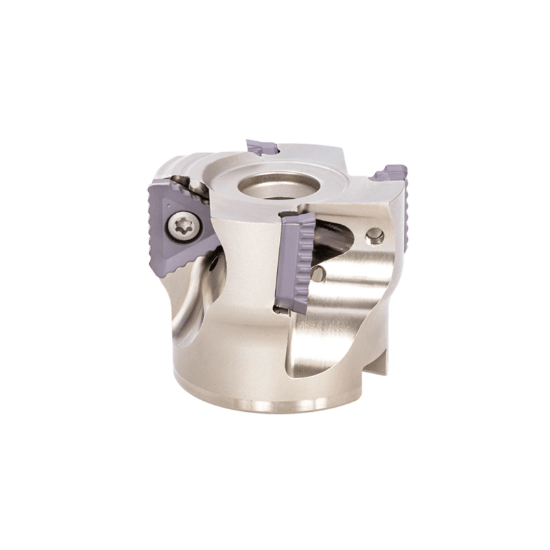

Picture of TUNGALOY TPTC16M063B22.0R05 Milling Cutter 90.0° 2.480 Cutter Diameter Shell Arbor 0.8661 5 Flute

TUNGALOY TPTC16M063B22.0R05 Milling Cutter 90.0° 2.480 Cutter Diameter Shell Arbor 0.8661 5 Flute

ANSI: TPTC16M063B22.0R05

ISO: TPTC16M063B22.0R05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6735575
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Dimensional Specifications
Cutter Dia 2.4800 62.99MM
Flutes/Inserts 5
Tool Material Steel
Insert Size Ic 16
Cut Dia Min 2.4800 62.99MM
Cut Dia Max 2.4800 62.99MM
Depth Of Cut Max 0.6299
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
Hand R/L Right
Insert Style TC
Fasteners & Connectors
Insert Screw 4352055
