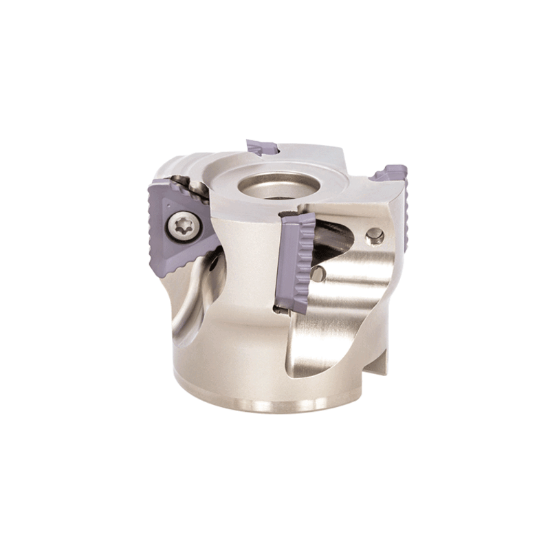

Picture of TUNGALOY TPTC16J080B25.4R06 Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 1.0000 6 Flute

TUNGALOY TPTC16J080B25.4R06 Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 1.0000 6 Flute

ANSI: TPTC16J080B25.4R06

ISO: TPTC16J080B25.4R06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6735576
Delivery date: 3-5 days
$805.35

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Face Milling
Insert Type Positive
Package Size 1
Insert Application Roughing, Semi Finishing
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 3.1500 80.01MM
Tool Material Steel
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 16
Depth Of Cut Max 0.6299
Cut Dia Max 3.1500 80.01MM
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 6
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
Insert Style TC
Fasteners & Connectors
Insert Screw 4352055
