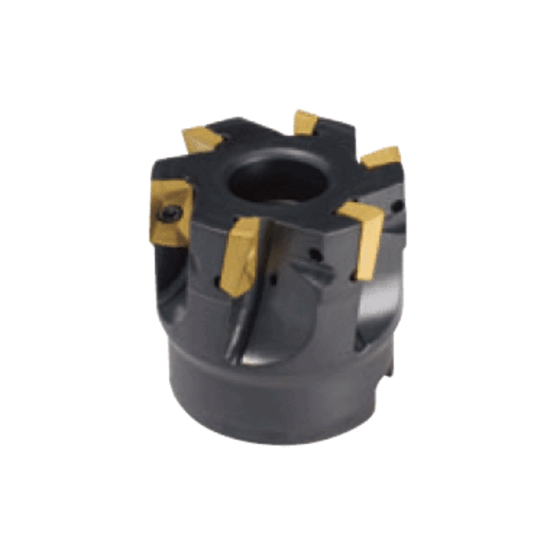

Picture of TUNGALOY TPS17400RBU Milling Cutter 90.0° 4.000 Cutter Diameter Shell Arbor 1.5000 9 Flute

TUNGALOY TPS17400RBU Milling Cutter 90.0° 4.000 Cutter Diameter Shell Arbor 1.5000 9 Flute

ANSI: TPS17400RBU

ISO: TPS17400RBU

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6852373
Delivery date: 3-5 days
$1,046.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Application Face Milling, Ramp Milling, Slot Milling, Side Milling, Pocket Milling
Package Size 1
Insert/Tool Tool
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.6300
Cut Dia Max 4.0000 101.60MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.5000 38.10MM
Insert Size Ic 17
Cut Dia Min 4.0000 101.60MM
Cutter Dia 4.0000 101.60MM
Flutes/Inserts 9
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AS
Fasteners & Connectors
Insert Screw 6816784
