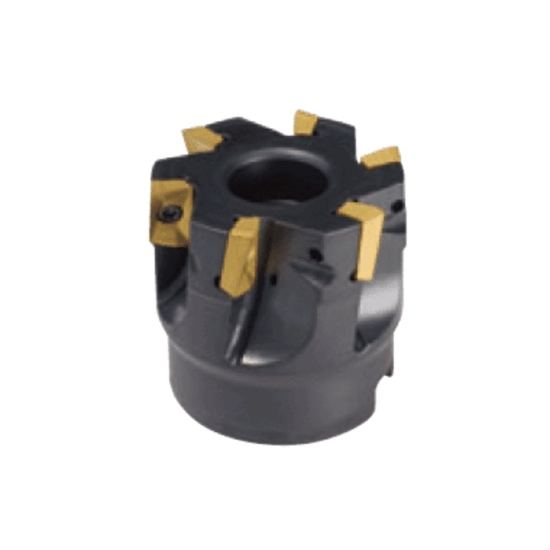

Picture of TUNGALOY TPS17300RBU Milling Cutter 90.0° 3.000 Cutter Diameter Shell Arbor 1.0000 8 Flute

TUNGALOY TPS17300RBU Milling Cutter 90.0° 3.000 Cutter Diameter Shell Arbor 1.0000 8 Flute

ANSI: TPS17300RBU

ISO: TPS17300RBU

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6852628
Delivery date: 3-5 days
$930.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Side Milling, Face Milling, Ramp Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Positive
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Cut Dia Max 3.0000 76.20MM
Depth Of Cut Max 0.0236
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 8
Insert Size Ic 17
Cutter Dia 3.0000 76.20MM
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Insert Style AS
Fasteners & Connectors
Insert Screw 6816784
